Tab A-1

Table A-1. Ranges of Values Used in SSTEMP Sensitivity Analysis

Parameter   Units Reference Range
      Gaining Losing Low High

Calibration Date     7/31/1995 7/25/1996

Inflow Temperature   F/C 72.72/22.62 71.11/21.73 66/18.89 73.4/23

Width's B-Term   dimensionless 0.207 0.38

Air Temperature   F/C 69/20.56 72.09/22.27 60/15.56 80/26.67

Total Shade   % 32 33 5 70

Wind Speed   mph 5 5 3 7

Relative Humidity   % 70 60 40 80

Possible Sun   % 65 65 50 90

Gaining Reach
Inflow   cfs 18.65 - 0.13 85
Outflow   cfs 19.8 - 2.33 87.4
Width's A-Term   sec/ft2 11.76 - 5.39 24.26

Losing Reach
Inflow   cfs - 14.09 2.13 87
Outflow   cfs - 10.95 0.13 85
Width's A-Term   sec/ft2 - 8.24 4.03 16.11

Ground Temperature   F/C 62/16.67 62/16.67 55/12.78 67/19.44

Thermal Gradient   joules/m2/sec/C 1.65 1.65 0.65 2.65

Dust Coefficient   dimensionless 5 5 3 15

Ground Reflectivity   % 10 10 5 30

Notes:
The range of the A Term is equivalent to a width:depth ratio range from 4.86 to 78.
Stream temperatures, air temperature, wind speed, and relative humidity are based on
7-day running average values from records collected at the California Department of
Forestry facility near Boonville.

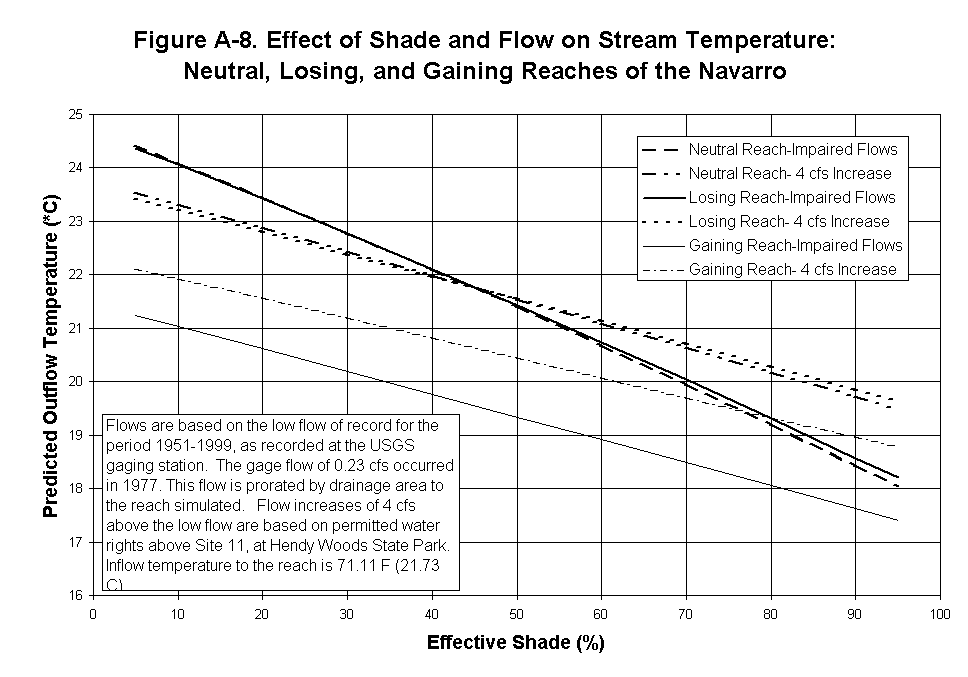

Chart Figure A-8. Effect of Shade and Flow on Stream Temperature: Neutral, Losing, and Gaining Reaches of the Navarro

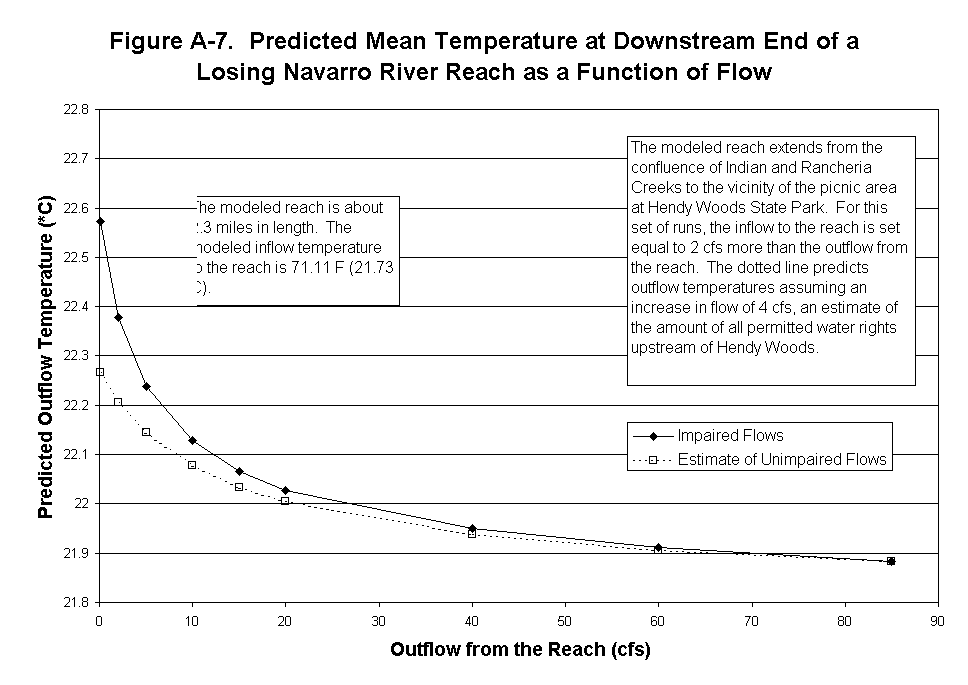

Chart Figure A-7. Predicted Mean Temperature at Downstream End of a Losing Navarro River Reach as a Function of Flow

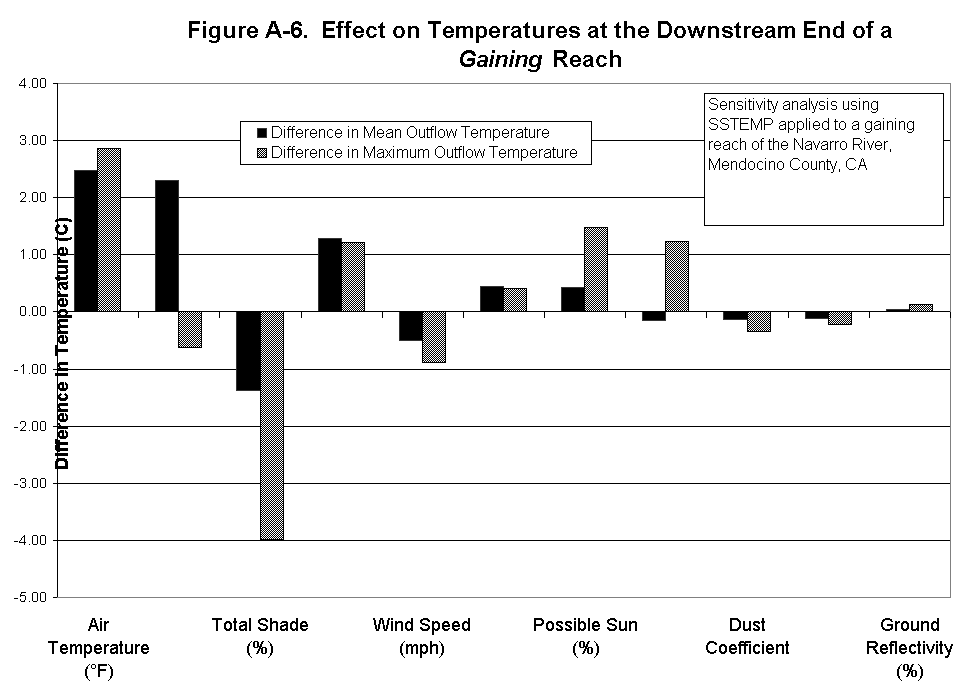

Chart Figure A-6. Effect on Temperatures at the Downstream End of a Gaining Reach

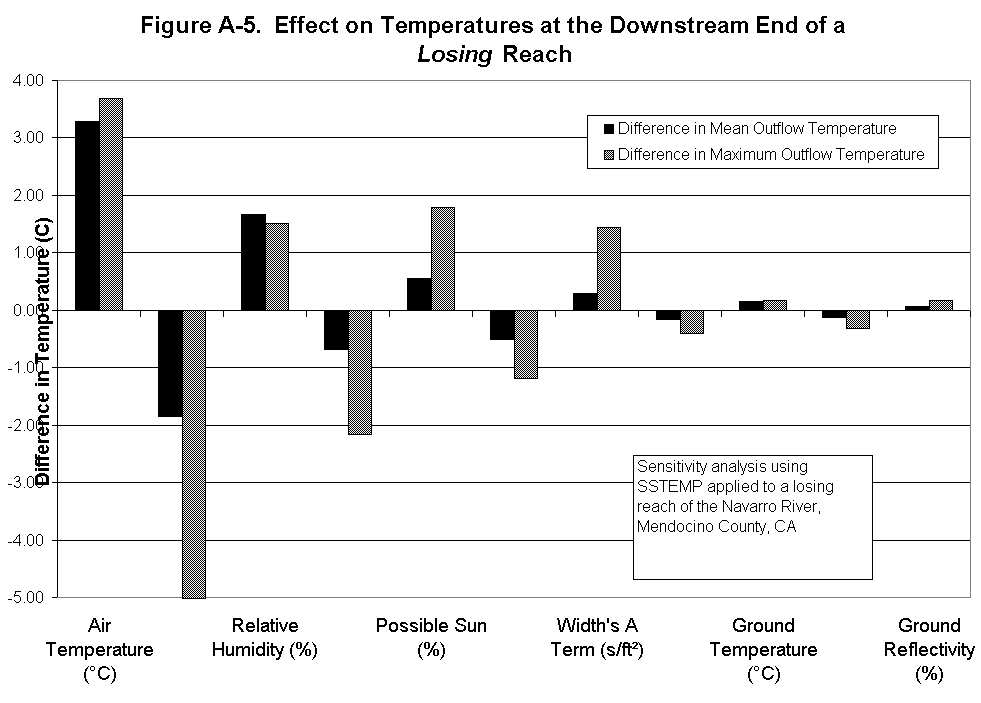

Chart Figure A-5. Effect on Temperatures at the Downstream End of a Losing Reach

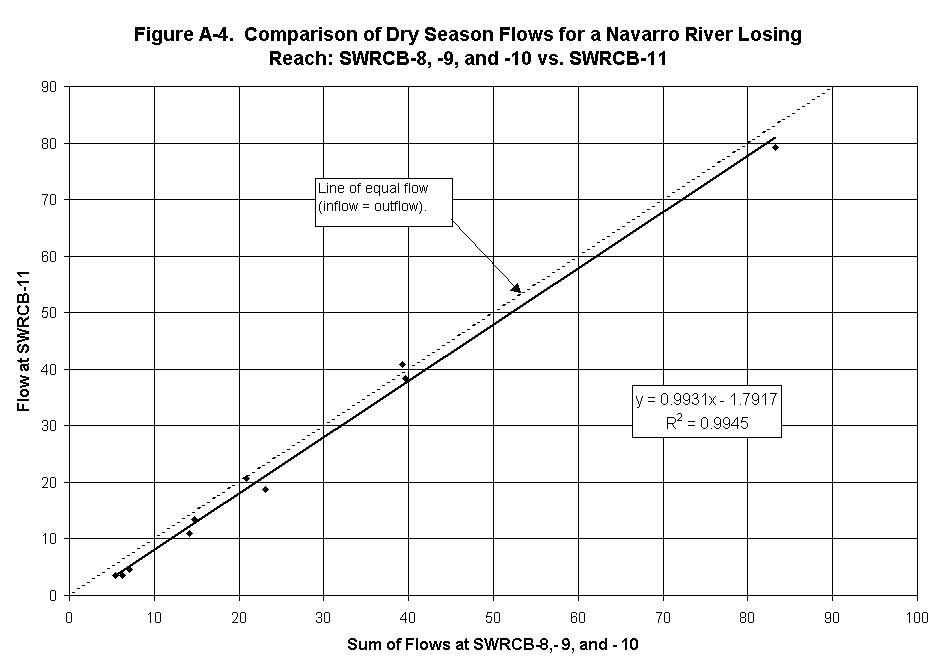

Chart Figure A-4. Comparison of Dry Season Flows for a Navarro River Losing Reach: SWRCB-8, -9, and -10 vs. SWRCB-11

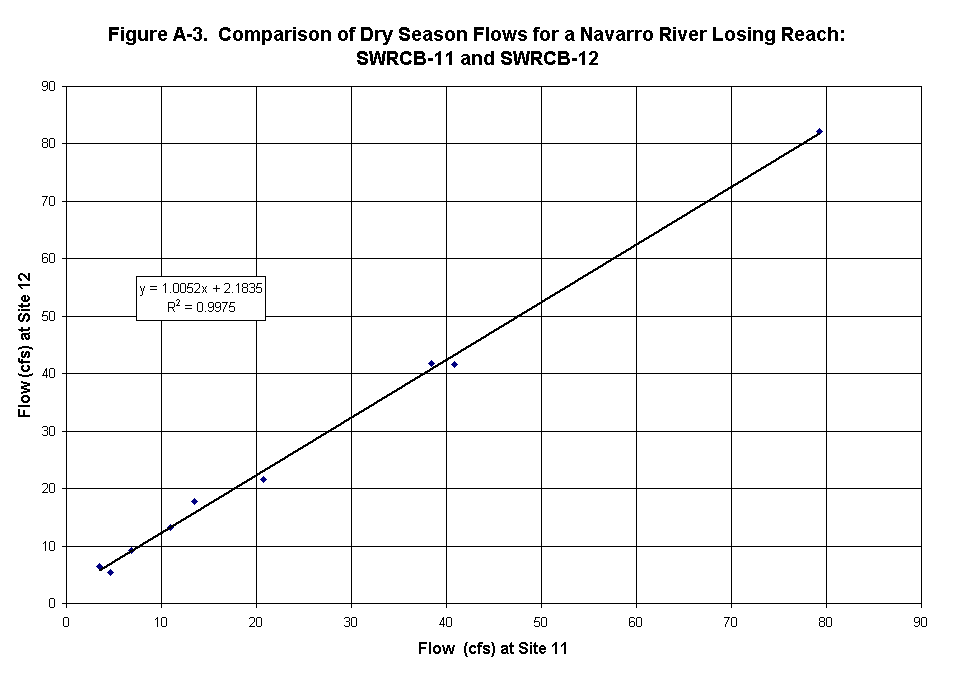

Chart Figure A-3. Comparison of Dry Season Flows for a Navarro River Losing Reach: SWRCB-11 and SWRCB-12

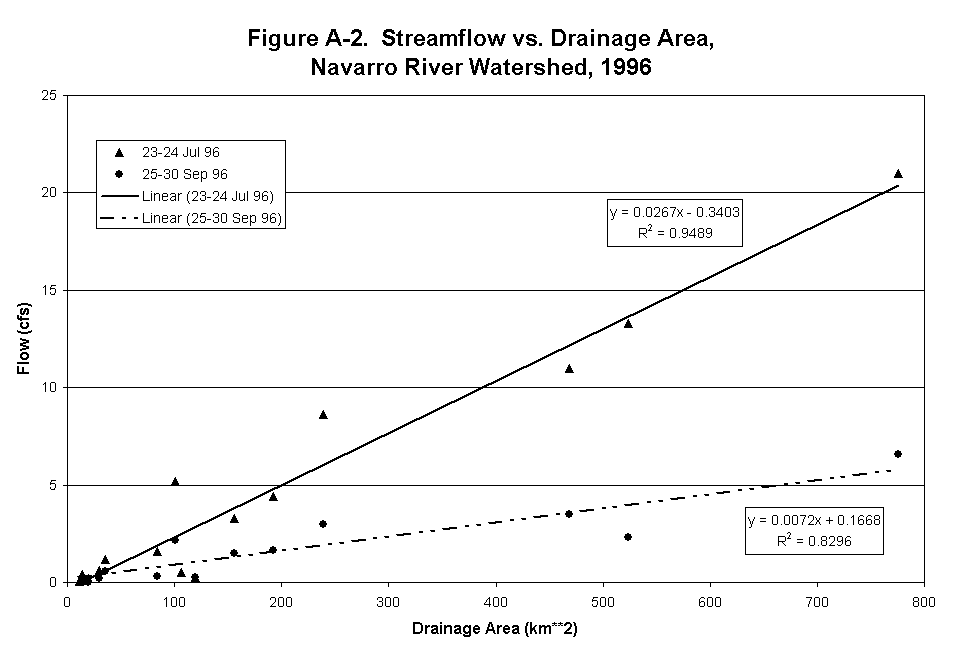

Chart Figure A-2. Streamflow vs. Drainage Area, Navarro River Watershed, 1996

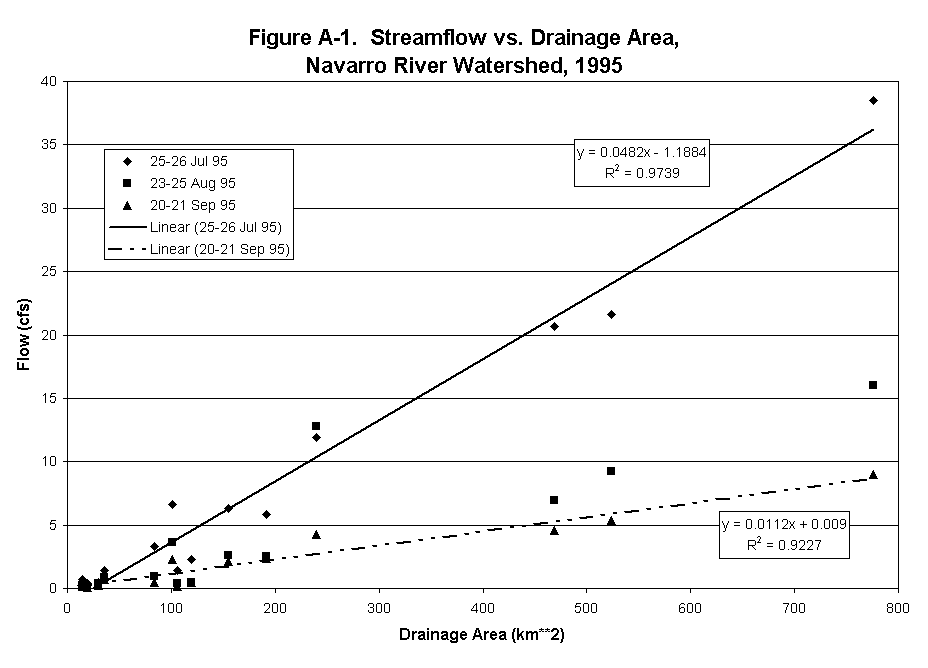

Chart Figure A-1. Streamflow vs. Drainage Area, Navarro River Watershed, 1995


Last Updated on 5/21/2001
By Drew Bayless
